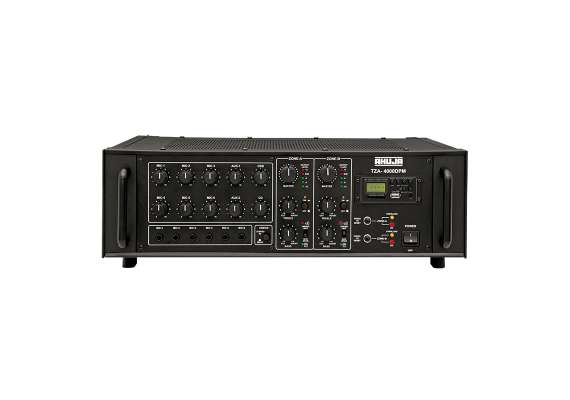

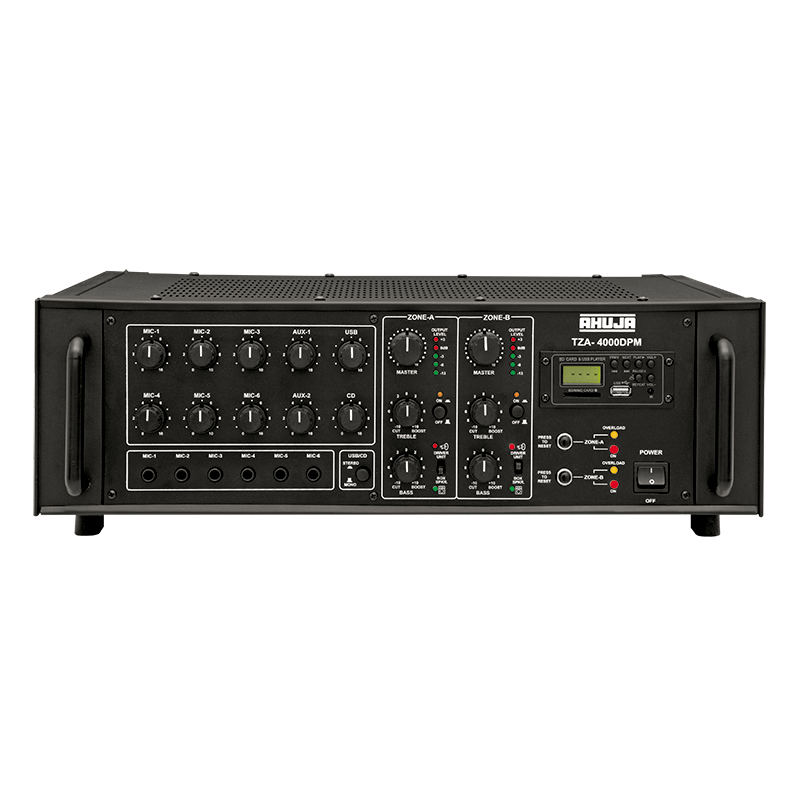

Ahuja TZA-4000DPM 2 Zone PA Mixer Amplifier
TZA-4000DPM
We at Shopit are committed to providing you, our customer, with the best in products t...
+254-777-777000
Ask a question
Stereo/Mono switch to change ambience of MP3 music player and CD/Stereo music for DJ programmes
Separate USB level control provided
Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording
Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility
Resettable circuit breaker for protection against overload and short circuit
Instant transfer to DC power (Car Battery) if AC power fails
Power Output: 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: Mic/Aux: 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output: Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output: 4Ω, 8Ω, 70V & 100V for each zone
Digital Player: MP3 Player with USB, SD and MMC Card Reader
Power Supply: AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption: AC: 700VA DC: 9A
Dimensions: W510 × H172 × D385 mm
Weight: 24.2kg
Separate USB level control provided
Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording
Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility
Resettable circuit breaker for protection against overload and short circuit
Instant transfer to DC power (Car Battery) if AC power fails
Power Output: 300W + 300W Max., 200W + 200W RMS at 10% THD, 180W + 180W RMS at 5% THD, 165W + 165W RMS at 2% THD
Output Regulation: ≤ 2 dB, no load to full load at 1kHz
Input Channels: Mic/Aux: 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo Music Mode: L/R 200mV/100kΩ, Line L/R 1V/50kΩ
Frequency Response: 50-15,000Hz ±3dB
Signal to Noise Ratio: 60dB
Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output: Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output: 4Ω, 8Ω, 70V & 100V for each zone
Digital Player: MP3 Player with USB, SD and MMC Card Reader
Power Supply: AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption: AC: 700VA DC: 9A
Dimensions: W510 × H172 × D385 mm
Weight: 24.2kg
