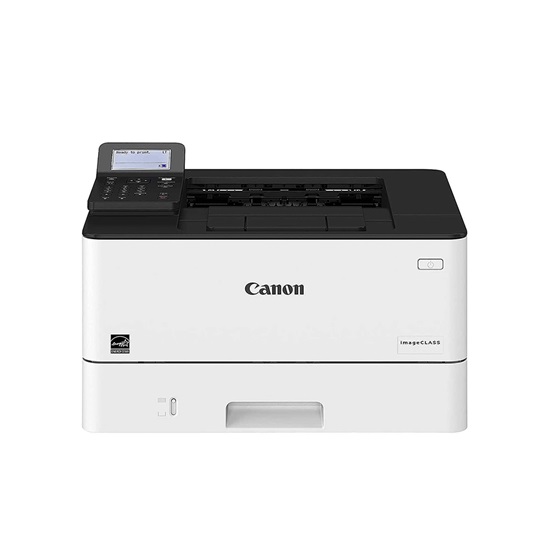

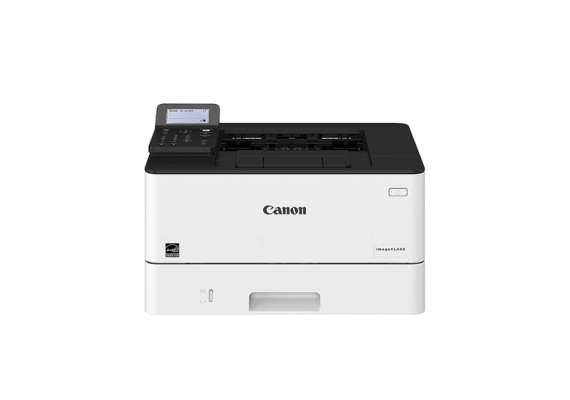

Canon i-SENSYS LBP233dw Laserjet Printer

General Specifications

Machine Type
Laser printer
Available Functions
Print

Print Specifications

Print Speed
Single sided: Up to 33 ppm (A4)
Up to 52.5 ppm (A5-Landscape)
Double sided: Up to 28.7 ipm (A4)
Printing Method
Monochrome laser beam printing
Print Resolution
Up to 1200 x 1200 dpi
Warm-up Time
Approx. 14 seconds or less from power on
First-Print-Out Time
Approx. 5.5 seconds or less
Printer Languages
UFRII, PCL 5e3, PCL6
Fonts
45 PCL fonts
Print Margins
5 mm-top, bottom, left and right
Advanced Printing Features
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Media Handling

Paper Input (Standard)
250-sheet cassette
100-sheet multi-purpose tray
Paper Input (Option)
550-sheet cassette
Maximum Paper Input Capacity
Up to 900 sheet
Paper Output
150-sheet
Media Types
Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
Media Sizes
Cassette:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.
Media Weights
Cassette (standard and optional): 60 to 120 g/m²
Multi-purpose tray : 60 to 163 g/m²
Double Sided Printing
A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
60 to 120 g/m²

Interface & Software

Interface Type
USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
Operating System Compatibility
Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
Mac OS X version 10.11 & up
Linux4
Network Protocol
Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management:
SNMPv1, SNMPv3 (IPv4, IPv6)

Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Access Point Mode:
WPA2-PSK (AES)
Software and Printer Management
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

Recommended Monthly Print Volume
750 - 4,000 pages per month
Duty Cycle
80,000 pages
Processor Speed
800MHz x 2
Memory
1GB
Control Panel
5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
Dimensions with Trays (W x D x H)
401 mm x 373 mm x 250 mm
Weight
Approx. 9.5 Kg
Operating Environment
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)
Power Source
220-240V (±10%) 50/60Hz (±2Hz)
Power Consumption
Maximum: Approx. 1,330 W
Standby: Approx. 9 W
Sleep mode: Approx. 0.9 W

Noise Levels
Sound Pressure:
Active: 54 dB
Standby: Inaudible

Sound Power1:
Active: 68 dB
Standby: Inaudible2

Consumables

Cartridges
Cartridge 057 (3,100 pages )
Cartridge 057H (10,000 pages )

Accessories & Options

Items
Cassette Feeding Module-AH1
