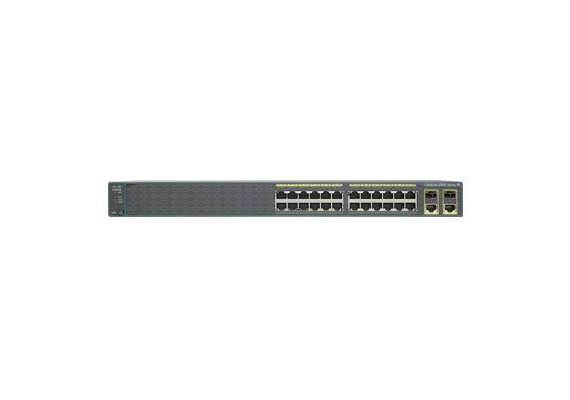

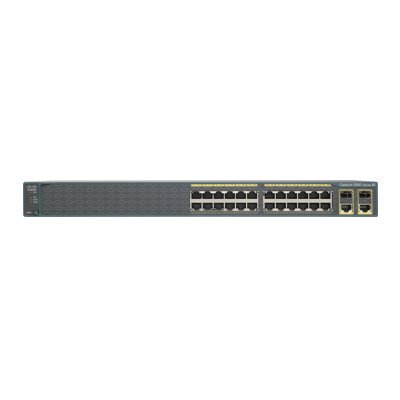

Cisco Catalyst 2960-24TC-S 24 ports Managed Switch
Technical Specifications
Dimensions (H x W x D): 1.73 x 17.5 x 9.3 in. (4.4 x 44.5 x 23.6 cm.)
Max. Watt Power Consumption: 30
Operating Relative Humidity:10% to 95% noncondensing
Unicast MAC Addresses: 8000
Operating Temperature up to 5000 ft (1500 m): 23 to 113 F (-5 to 45 C)
Short-term Exception up to 10,000 feet (3000 m): 23 to 113 F (-5 to 45 C)
IPv4 IGMP Groups: 255
Operating Temperature up to 10,000 ft (3000 m): 23 to 104 F (-5 to 40 C)
Maximum Transmission Unit (MTU): Up to 9000 bytes
Short-term Exception up to 5000 feet (1500 m): 23 to 122 F (-5 to 50 C)
Voltage: 100 to 240 VAC (Autoranging); 50 to 60 Hz
Short-term Exception at Sea Level: 23 to 131 F (-5 to 55 C)
Operating Altitude: Up to 10,000 feet (3000 m)
Packets per second (Mbps): 6.5
Max VLANs: 255
AC Power Supply Rating: 30 W
Ports: 24
Switching Bandwidth: 32 Gbps
Uplinks: 2 dual-purpose
Weight: 8 lbs (3.6 kg)
Short-term Exception up to 13,000 feet (4000 m): 23 to 104 F (-5 to 40 C)
Storage Altitude: Up to 13,000 feet (4000 m)
Memory DRAM: 64 MB
Storage Relative Humidity:10% to 95% noncondensing
Model: LAN Lite Entry Layer 2
Forwarding Bandwidth:16 Gbps
Flash Memory:32 MB
Storage Temperature up to 15,000 feet (4573 m):-13 to 158 F (-25 to 70 C)
Current:1.3 to 0.8 A
VLAN IDs:4000
Jumbo Frames: 9018 bytes
- New
- Rack Mount
- Ethernet (10/100Mbps)
- 24 ports
