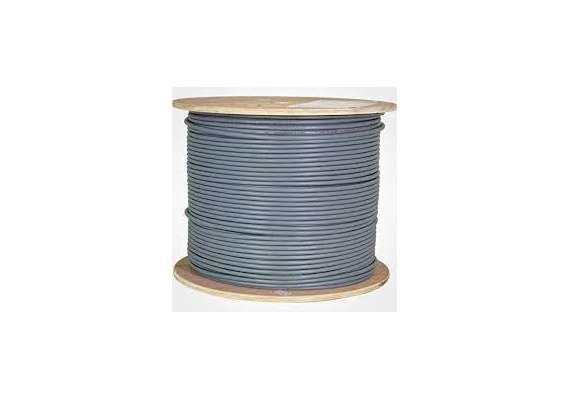

Giganet Cat 6 305M FTP Outdoor cable

The Giganet Cabling Solutions products have been designed and manufactured to top international quality standards
for end-to-end Category 6 cabling installations in both horizontal and backbone areas. The Giganet Category 6 FTP Outdoor Cable are manufactured and tested to the TIA‐568‐C.2, EN50173‐1 and ISO/IEC 11801 Category 6 specifications. Each cable consists of 8 colour coded 23AWG polyethylene insulated, solid bare copper, conductors. These are twisted together to form 4 pairs with varying lay lengths.

These pairs are then formed around a central ‘X’ shaped polyethylene filler. This filler assists in maintaining and enhancing the cables performance. A clear Mylar tape is then wrapped around this unit and a foil tape screen with 24AWG drain wire applied.

The foil screen provides protection from Electromagnetic Interference (EMI) which can occur when data is transmitted at high frequencies.

Giganet Cat 6 FTP outdoor cable Applications

• Voice
• Fast Ethernet(IEEE802.3)
• 100Vg-AnyLAN(IEEE 802.12)
• Token Ring(IEEE 802.5)
• TP-PMD(ANSI X3T9.5)
• 100Base-T Ethernet(IEEE 802.3u)
• 155/622 Mbps 1.2/ 2.4 Gbps ATM
• 1000Base-T Ethernet
• 550 MHz Broadband video

Cable Structure

• Twisted Pair Colors

Pair 1 > blue, white/blue ring.

Pair 2 > orange, white/orange ring

Pair 3 > green, white/green ring

Pair 4 > brown, white/brown ring

• Insulation Material: PE foam
• Core diameter : 1.64 ± 0.05mm
• Number of pairs : 4 pairs
• Portfolio: four pairs of twisted mountain of a round wire.
• Each pair twisted pair is wrapped in aluminum foil cover isolator , then all four are surrounded by a copper braid
• Jacket Material :PVC
• Wire diameter: 7.7mm   0.2mm
• Flame rating: CM
• Color: Gray

Physical Characteristics

• Coat Elongation: min 100%
• Coat tensile strength : min 1500psi
• Outside is 240 hours 1000C aging elongation retention : 70%
• After the outside is 240 hours 1000C aging tensile residual rate : 65%

Electrical Characteristics

• Characteristic impedance:100 Ohm  15%
• Conductor resistance (Max.) : 66.7 Ohm/Km at 200C
• Resistance unbalance (Max.) : 5% MAX./100m
• Mutual coupling capacitance: nom 13.6pf/ft
• Insulation resistance (Min.): 100M ohm/km
• Withstand voltage: 30V
• Temperature: 600​C
