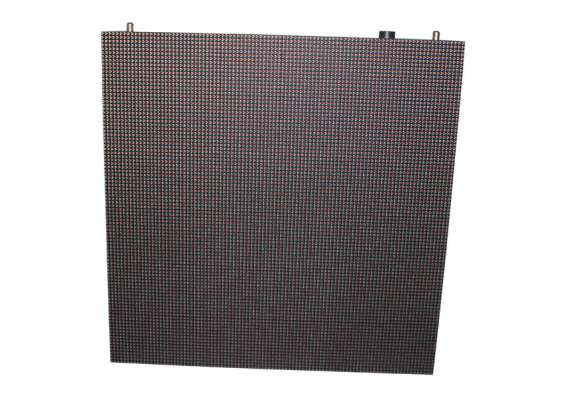

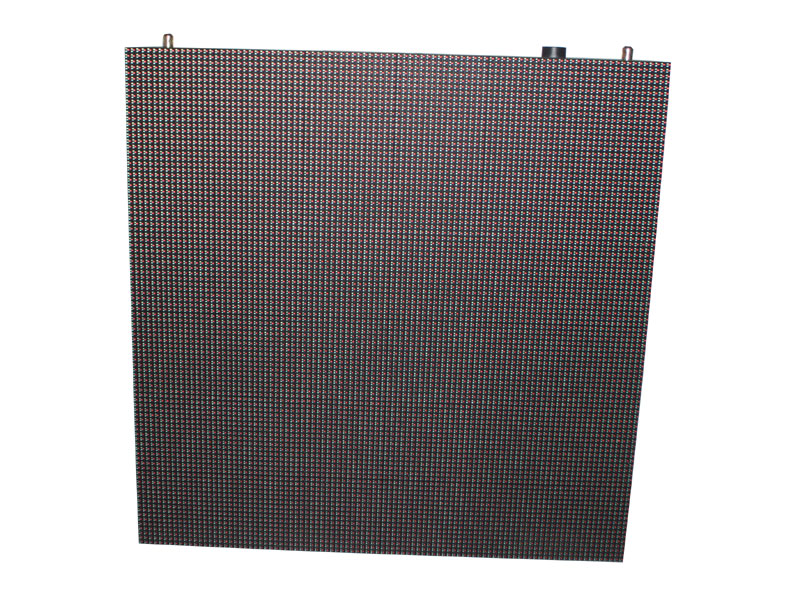

Mecer P10 OUTDOOR SCREEN
P10OUTDOOR
We at Shopit are committed to providing you, our customer, with the best in products t...
+254-777-777000
Ask a question
Module:P10 DIP 32*32 (9 PCS)
Pixel pitch:10mm
Pixel composition:1R 1G 1B
Module Size (W *L)mm:320 x 320
Module Size (W * L) Pixel:32x 32
Cabinet Size (W*L* H)mm:960 X 960*150
Cabinet Resolution (W *L)pixels:96 X 96
Display Screen Color:16,384 grey grades, totally 4,398 x 109M colors
Max brightness(CD/m²):≥7,500
Power consumption(Max):800W
Power consumption(average):300W
Power supply:88-132VAC/ 176-264VAC selected by switch
Viewing distance (Meter):10 – 200
Brightness adjustment:256 grades adjust
Viewing angle:horizontal≥110°vertical:up≥15°down≥30°
Refresh Frame Frequency:>120 frames/second
Refresh Ration:>240HZ
Continuous work time:>24 hrs
Life time:>100,000Hrs
Operating temperature:-20°C ~ +60°C
Operating humidity:10% ~ 90%RH
Waterproof standard:IP65
4 PCS of 5V fans
Power: Meanwell
NEL-400-5 (2 PCS)
Control card:RV901 or MRV300
Cabinet material:Iron (1 PCS)
Pixel pitch:10mm
Pixel composition:1R 1G 1B
Module Size (W *L)mm:320 x 320
Module Size (W * L) Pixel:32x 32
Cabinet Size (W*L* H)mm:960 X 960*150
Cabinet Resolution (W *L)pixels:96 X 96
Display Screen Color:16,384 grey grades, totally 4,398 x 109M colors
Max brightness(CD/m²):≥7,500
Power consumption(Max):800W
Power consumption(average):300W
Power supply:88-132VAC/ 176-264VAC selected by switch
Viewing distance (Meter):10 – 200
Brightness adjustment:256 grades adjust
Viewing angle:horizontal≥110°vertical:up≥15°down≥30°
Refresh Frame Frequency:>120 frames/second
Refresh Ration:>240HZ
Continuous work time:>24 hrs
Life time:>100,000Hrs
Operating temperature:-20°C ~ +60°C
Operating humidity:10% ~ 90%RH
Waterproof standard:IP65
4 PCS of 5V fans
Power: Meanwell
NEL-400-5 (2 PCS)
Control card:RV901 or MRV300
Cabinet material:Iron (1 PCS)
