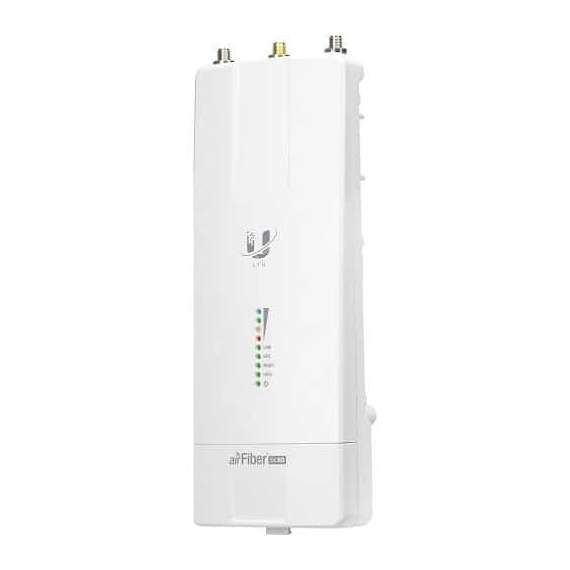

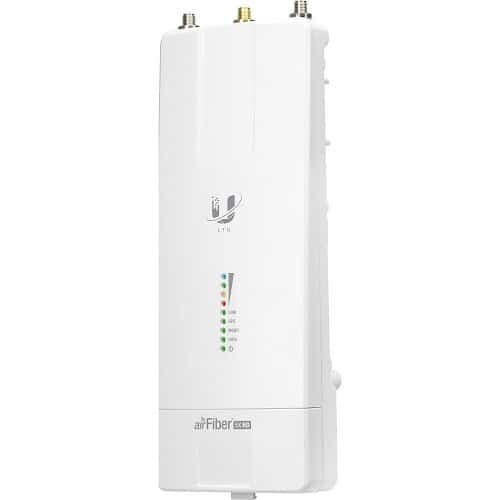

Ubiquiti AF-5XHD 5XHD AirFiber

AF-5XHD
We at Shopit are committed to providing you, our customer, with the best in products t...
+254-777-777000
Ask a question
General

Dimensions: 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″)
Weight: 0.35 kg (12.3 oz)
RF Connectors:
– (2) RP-SMA Weatherproof (CH0, CH1)
– (1) SMA Weatherproof (GPS)
GPS Antenna: External, Magnetic Base
Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
Power Method:
– Passive Power over Ethernet
– Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption: 6-12W
Supported Voltage Range: +18 to +54VDC
Mounting:
– airFiber X Mount (Rocket Mount Compatible)
– GPS Pole Mount (Included)
Operating Temperature: -40 to 55° C (-40 to 131° F)
Weatherproofing: IP67
Certifications: CE, FCC, IC
System
Processor: airFiber LTU IC
Maximum Throughput: 1.34 Gbps
Maximum Range: 100 km4
Packets per Second: 2+ Million6
Latency: 1.5 ms – 3.5 ms
Encryption: AES-256
OS: airOS LTU
Wireless Modes: PtP Master/Slave
Networking Interface
Data Port: (1) 10/100/1000 Ethernet Port
Management Port:
– (1) 10/100/1000 Ethernet Port
– Bluetooth v4.0
Radio
Frequency Range: 4.8 GHz – 6.2 GHz (Worldwide)
Max. Conducted TX Power: 29 dBm (Dependent on Regulatory Region)
Frequency Accuracy: < 2 ppm
Channel Bandwidth:
– 10/20/30/40/50/60/80/100 MHz Selectable
– Programmable Uplink and Downlink Duty Cycles
Suggested Max. TX Power
12x: 12 – 15 dBm
10x: 19 – 20 dBm
8x: 21 – 22 dBm
6x: 23 – 24 dBm
4x: 29 dBm
2x: 29 dBm
1x: 29 dBm
Brand
Ubiquiti
Condition
  • New
Warranty Issuer
  • Manufacturer
